Specification:
Input Voltage: 4-12V
Max. Current: 10 Amp
Battery Mode: 1. NiHM / NiCad 2. LiPo
Operating temperature: 0-50?

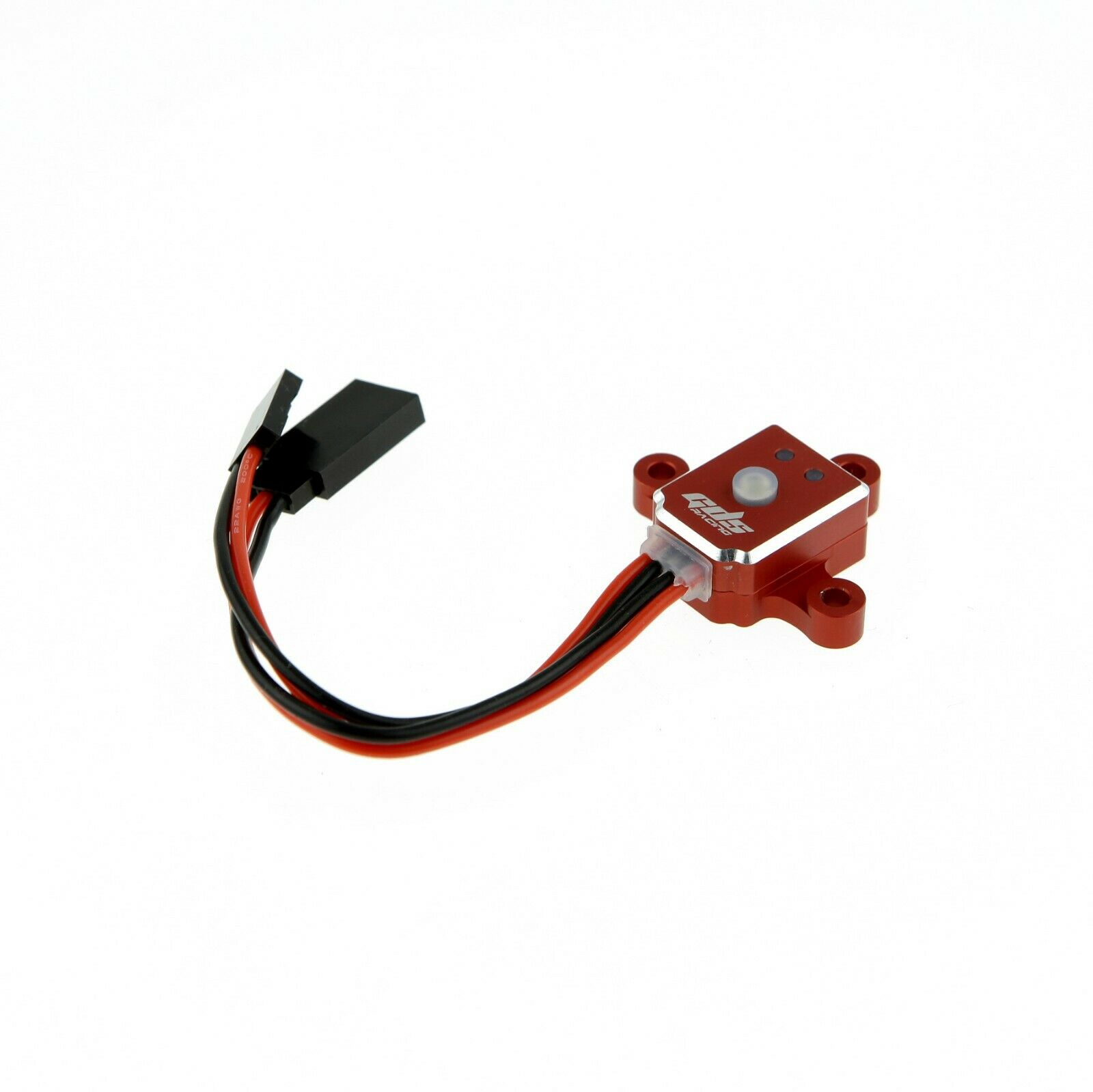

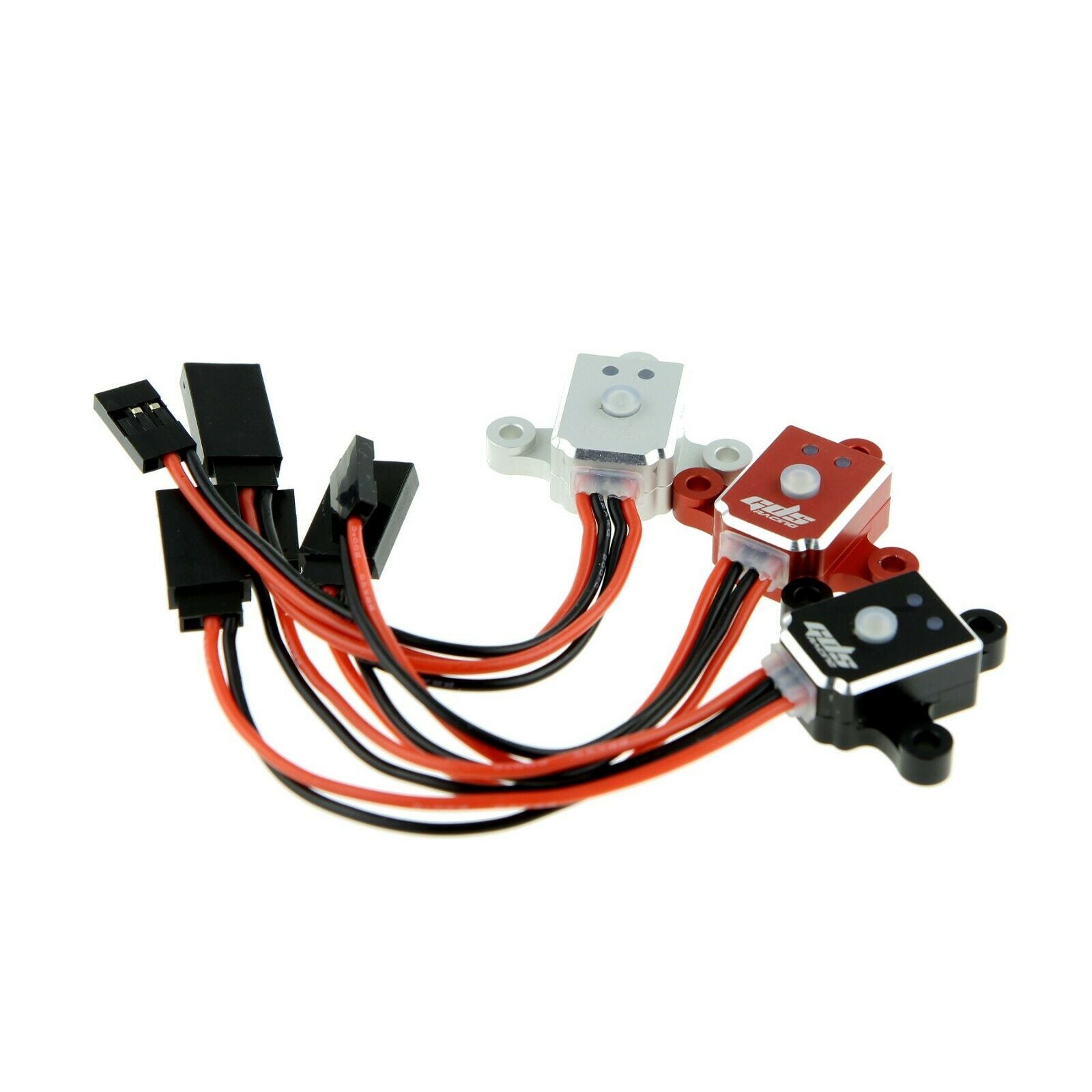

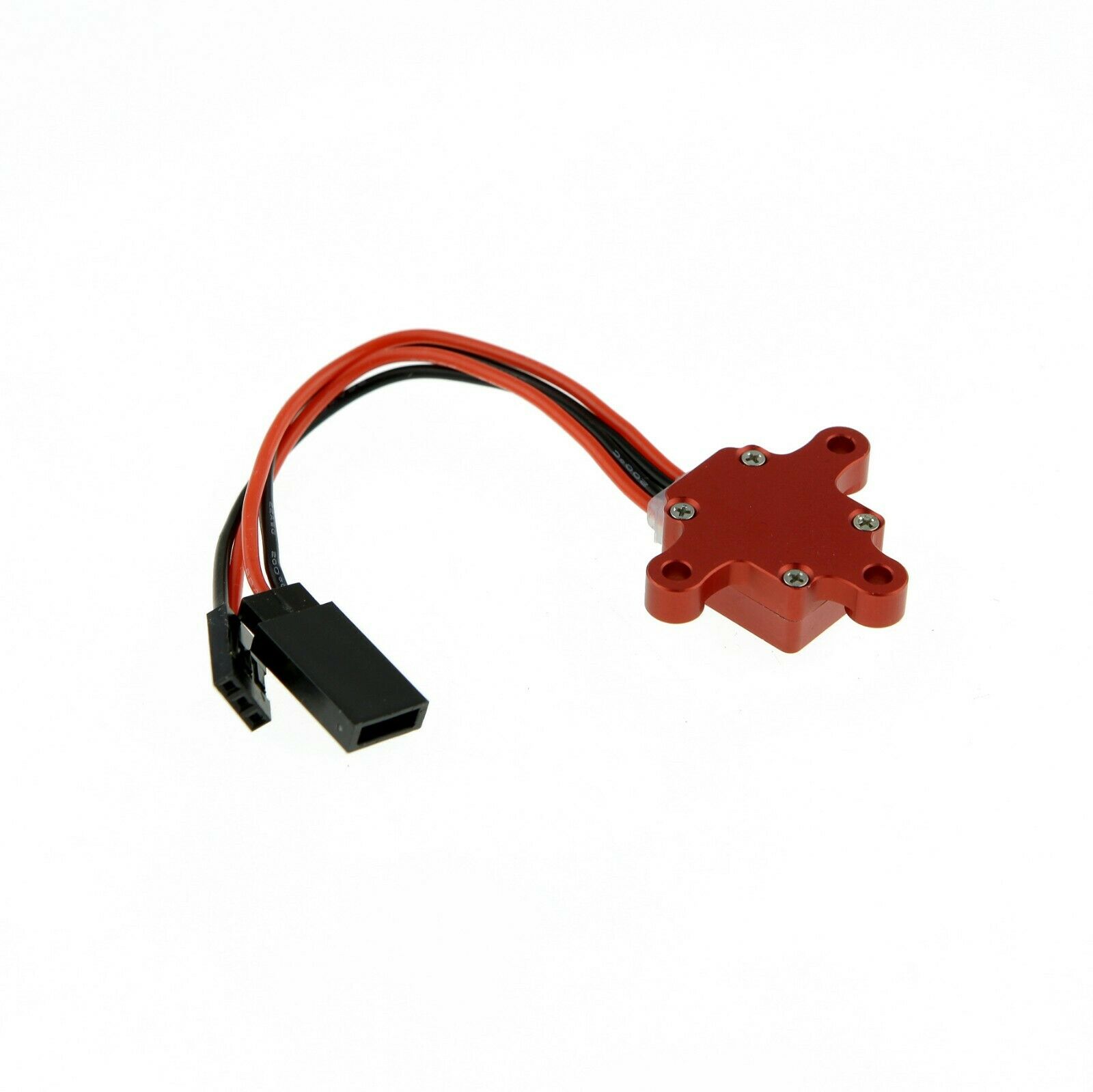

Full CNC machined switch shell with low volt warn. Same mounting size as mylaps rc4 transponder, Waterproof and dustproof, only about 12g weight.
Press and hold the switch button for two second the power light will turn on and it’s NIHM Model.
Press and hold the switch button for two second the power light and lipo model light will turn on and it’s Lipo model.
Power Light Color |
Li-Po |
Ni-HM |
||
Green |
>8V |
80%?100% |
>6.5V |
80%?100% |
Orange |
7.2?7.9V |
60%?79% |
5.5?6.4V |
60%?79% |
Red |
6.2?7.1V |
20%?59% |
4.5?5.4V |
20%?59% |
Red Flash |
<6.2 |
<20% |
<4.5V |
<20% |
