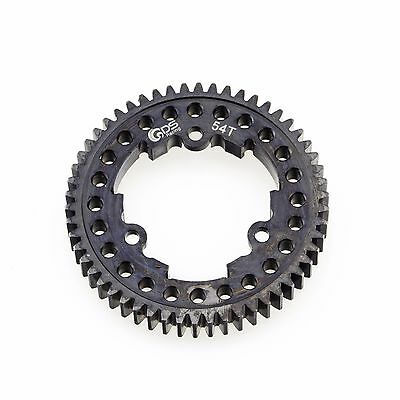

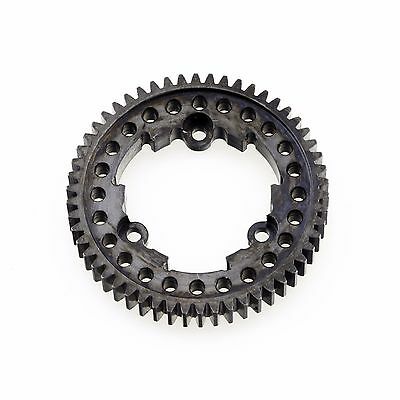

Replacement spur gear for Traxxas E Revo2, X-Maxx 6S, 8S, and XO-1.
Teeth: 54
Pitch: 1.0 metric pitch (M1, Mod1)
Thickness: 8mm
Diameter: 2.2" (56mm)
Requirements:
- Do NOT use the pin system for setting the X-Maxx gear mesh. Please manually set the gear mesh without the pins. Refer to the Traxxas manual for instructions (ref. pg.22 - Adjusting Gear Mesh)
- With the pins removed, use the four 4x16mm button-head cap screws on the bottom to set gear mesh. Loosen the four 4x16mm button-head cap screws. Cut a narrow strip of notebook paper and run it into the gear mesh. Slide the motor and pinion gear into the spur gear. Tighten the four 4x16mm button-head cap screws, and then remove the strip of paper. You should be able to run a fresh strip of paper through the gears without binding them.
